Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
Non-stop gaming: DDR5, two M.2 slots, PCIe 4.0, Realtek 2.5 Gb Ethernet, ASUS Beyond VR ready and Epic audio
Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
AEMP II for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.
Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.
*Results may vary according to the capabilities of your CPU and memory modules.
**The comparison chart is based on a test with an Intel® i9-13900K processor and 2×16 GB SK Hynix DDR5-4800 non-ECC UDIMMs, model HMCG78MEBUA081N.
***Please ensure all memory modules are from a single validated kit. Do not combine DIMMs from multiple kits—even if they are the same make and model. Mixing and matching DIMMs can result in failure to boot, and compatibility cannot be guaranteed.
****Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with your retailer to get the correct memory modules.
Up to 37.5%
6600(OC)AEMP II
4800DDR5 Baseband
Dual M.2 slots (up to 64 Gbps)

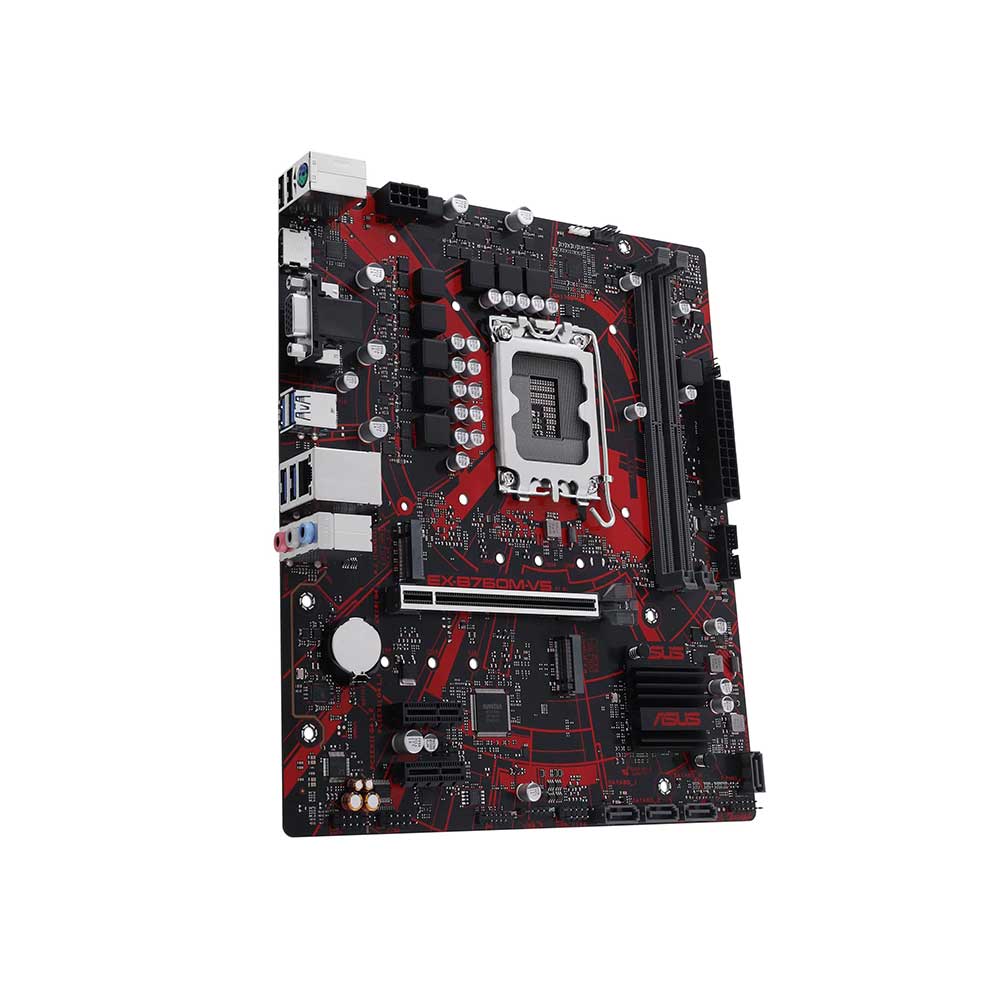

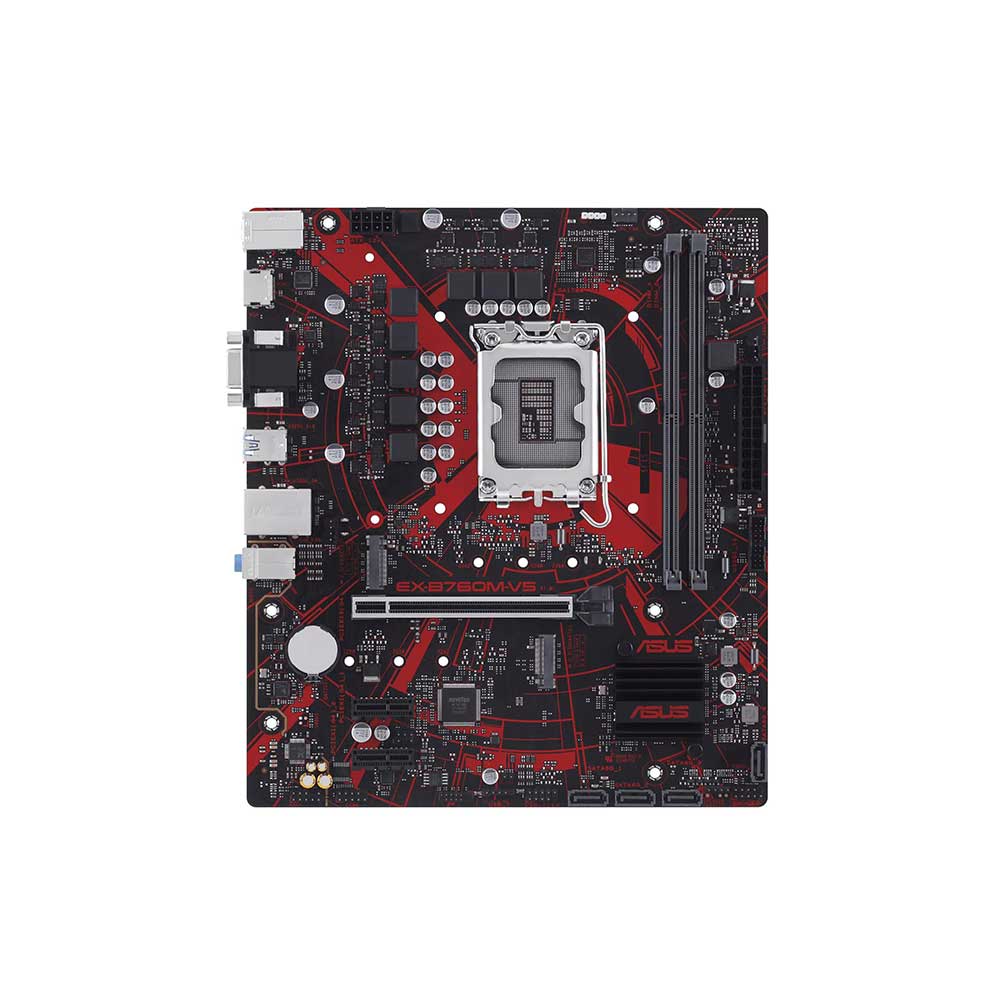

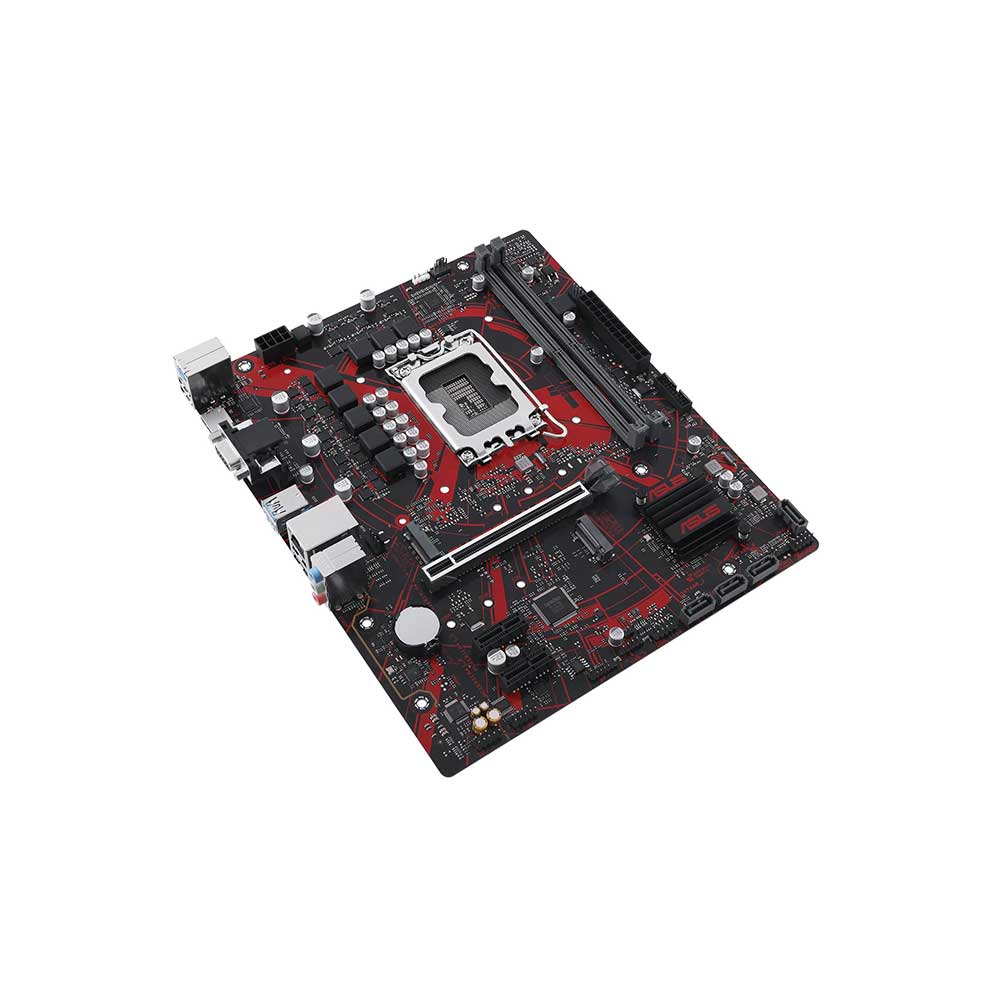

EX-B760M-V5 offers a total of two M.2 slots to support data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
PCIe® 4.0 Slot
ASUS Expedition motherboards are designed specifically for 14th, 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Lower CPU workload
High TCP and UDP throughput
ASUS Beyond VR Ready
Perfect for iCafe Owners Wanting to Expand
Beat the competition by offering a VR experience in your iCafe with ASUS Beyond VR Ready. ASUS Expedition motherboards, plus the right mix of class-leading ASUS components, are the perfect solution for delivering the best VR experiences to your customers. ASUS Expedition motherboards passed the 3DMark VR test and further ASUS VR tests without any faults, so you can feel confident that you’re offering the best performance and reliability.Expand your businesses appeal, and take your iCafe into the age of VR computing — with ASUS Beyond VR Ready!
Epic gaming audio
Discover a whole new dimension of superior audio and get ready to rule!
Separate layer for left and right tracks
Ensures both channels deliver consistent, equal quality.
Premium audio capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
NON STOP CHALLENEGING
144-hr diskless solution compatibility
ASUS operates the iCafé Labs to certify Expedition motherboards for use as diskless systems, subjecting them to 144 hours of dedicated tests, including a 24-hour reboot test and 12-hour 3D Mark test with heavy loading. A total of 1,200 validation hours ensure that Expedition motherboards are ready to run non-stop — with the smooth performance you demand.
Top games and 100+ peripherals tested
ASUS iCafé Labs engineers also subject Expedition boards to lengthy stability tests in an environment that simulates a real-world internet café. We test with the top games, and with over 100 of the most popular hardware combinations, so both you and your customers are assured of the very best gaming experiences
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/ 7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x VGA port
1 x HDMITM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot Intel® B760 Chipset
2 x PCIe 4.0 x1 slots
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
USB
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header (5G) supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Premium audio capacitors
– Audio Shielding
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector Storage related
2x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core ASUS EZ DIY
– ProCool Non-stop Action
– Lightning Boot Non-stop Challenger
– ASUS iCafe labs certified Non-stop Durability
– Luminous anti-moisture coating
– USBGuard
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables Miscellaneous
1 x I/O Shield
2 x M.2 Anchors Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
