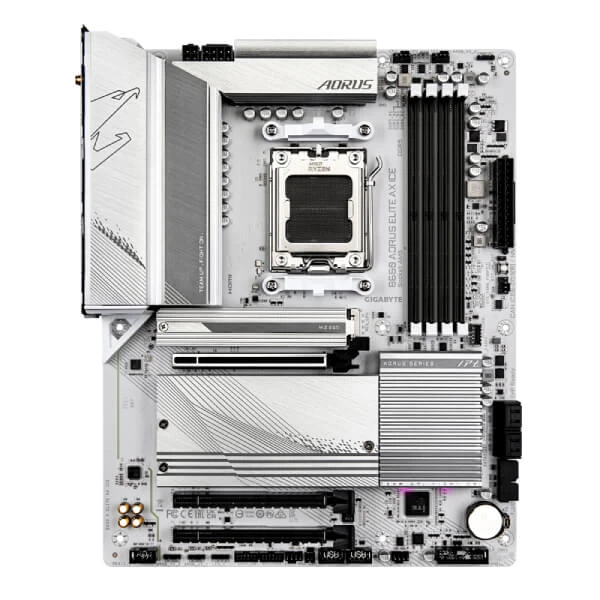

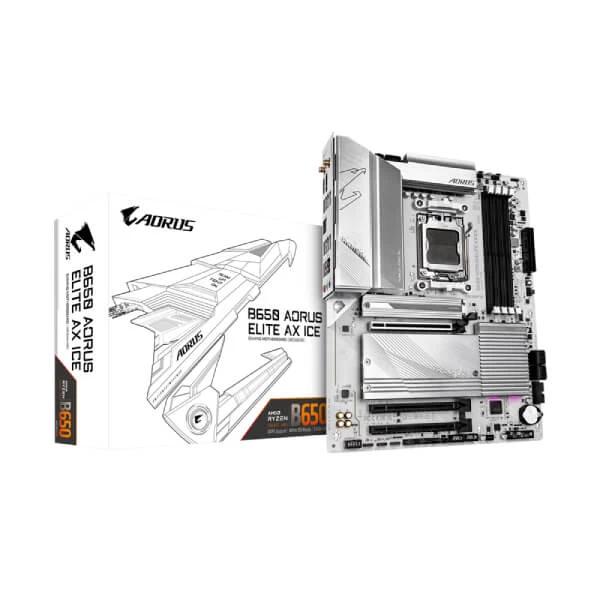

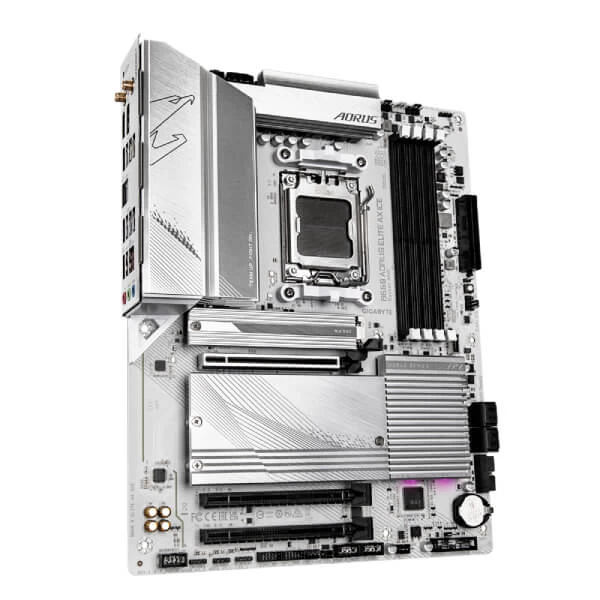

Gigabyte B650 Aorus Elite AX ICE (Wi-Fi) Motherboard

7600(OC)/7200(OC)/7000(OC)/6800(OC)/

6666(OC)/6600(OC)/6400(OC)/6200(OC)/

6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module

(The CPU and memory configuration may affect the supported memory types, data  rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

– 1 x DisplayPort, supporting a maximum resolution of 3840×2160144 Hz

– 1 x HDMI port, supporting a maximum resolution of 4096×2160 60 Hz

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

-AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

– 2 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2))

-AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
-AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1xM.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key,type 25110/22110/2580/2280 PCIe 4.0

4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports on the back panel

Chipset:

– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

– 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub:

– 4 x USB 3.2 Gen 1 ports on the back panel

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 1 x THB_U4 add-in card connector
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

• 1 x Q-Flash Plus button
• 2 x SMA antenna connectors (2T2R)jk

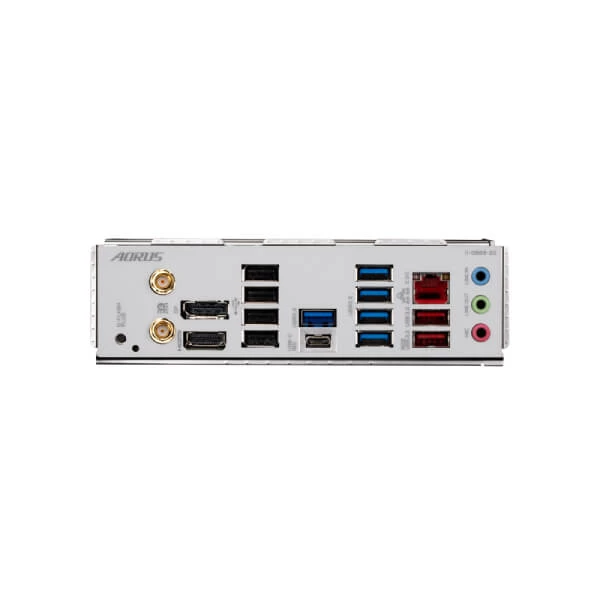

• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 5 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for Q-Flash

Support for Q-Flash Plus

LAN bandwidth management software

Support for Windows 10 64-bit
