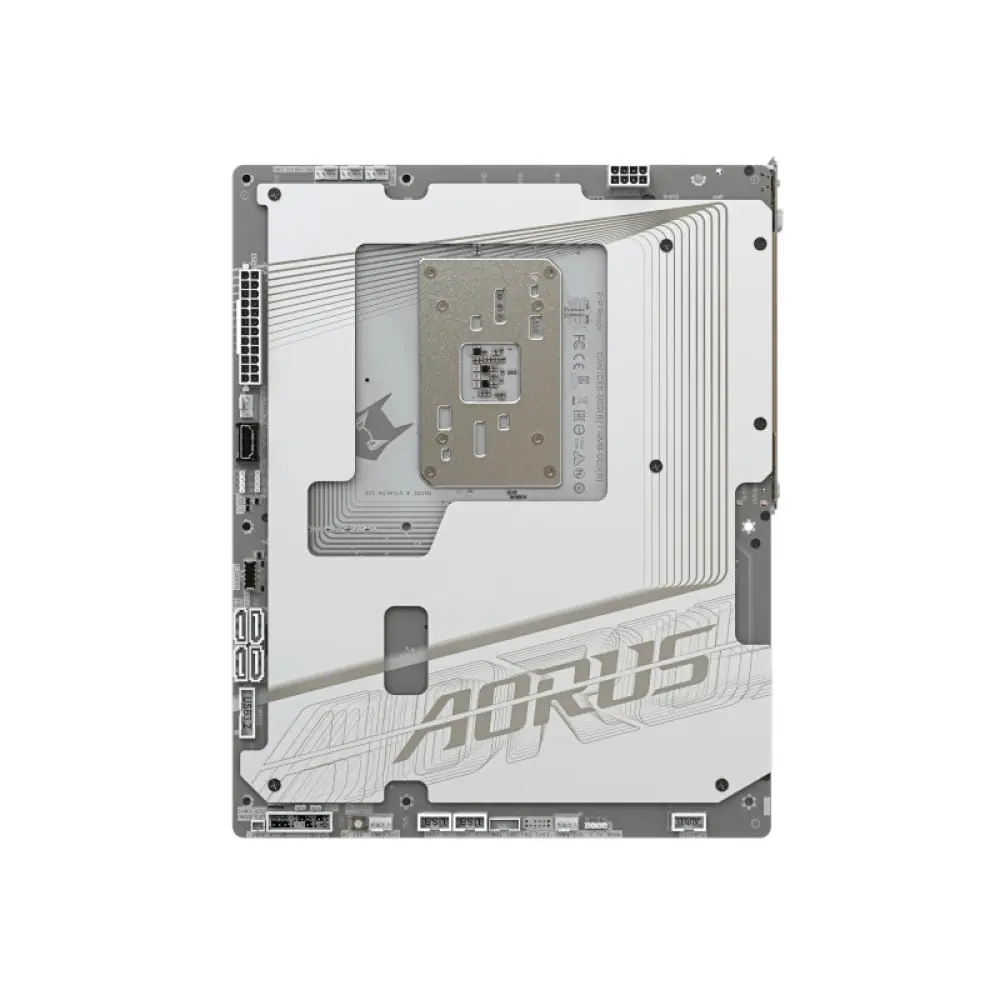

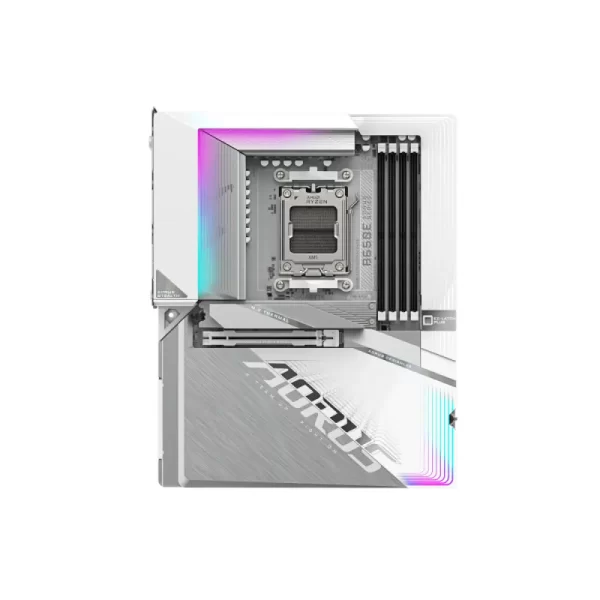

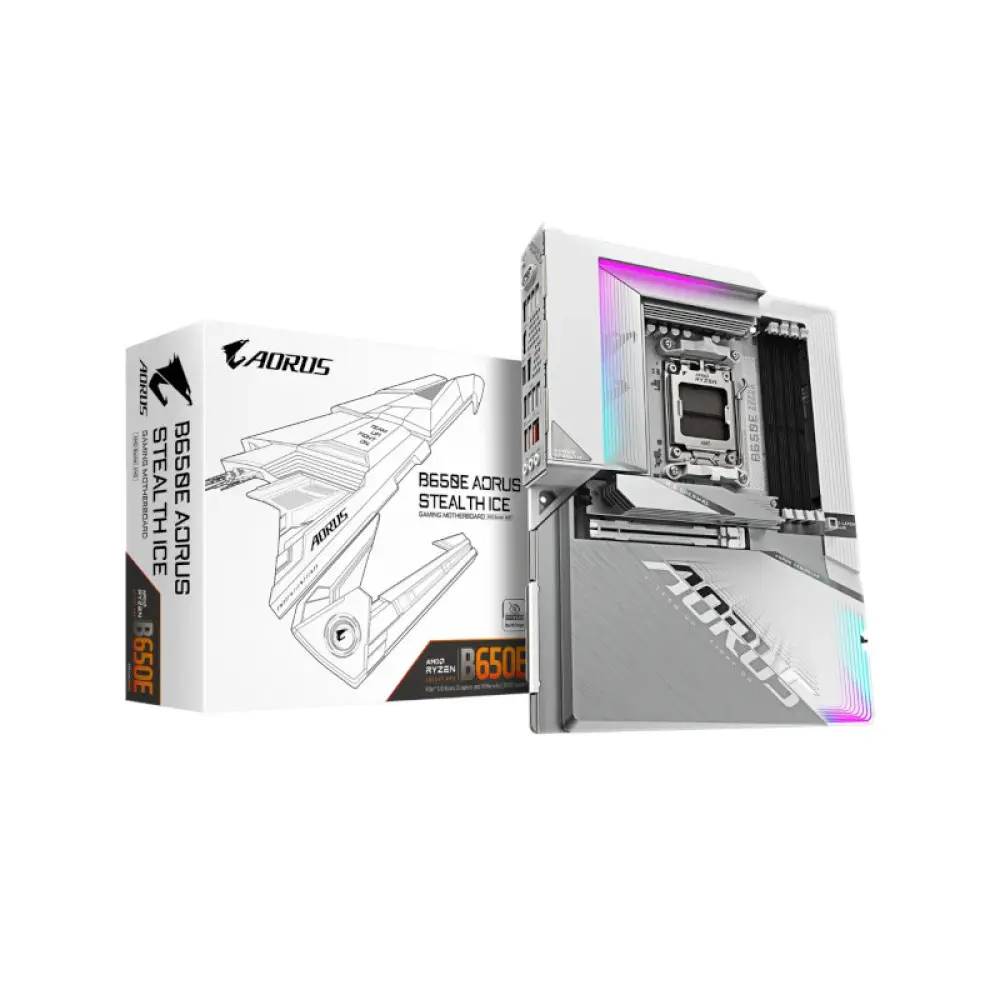

Gigabyte B650E AORUS Stealth ICE AMD AM5 ATX Motherboard

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE’s website for the latest CPU support list.)

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

– 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs

and a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

– 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

* Support for HDMI 1.4 version

(Graphics specifications may vary depending on CPU support.)

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software.To configure 7.1-channel audio, access the audio software for audio settings.

– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.4

– Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.

– AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

– AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

– AMD Ryzen™ 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0×4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

– AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 (Note1)

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports on the back panel

Chipset:

– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

– 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

– 4 x USB 3.2 Gen 1 ports on the back panel

(Note 1) This USB Type-C® port supports a maximum speed of 40Gbps. Actual support may vary by CPU.

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2×2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note2)

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

(Note 2) Only available with the AMD Radeon™ Graphics Processors.

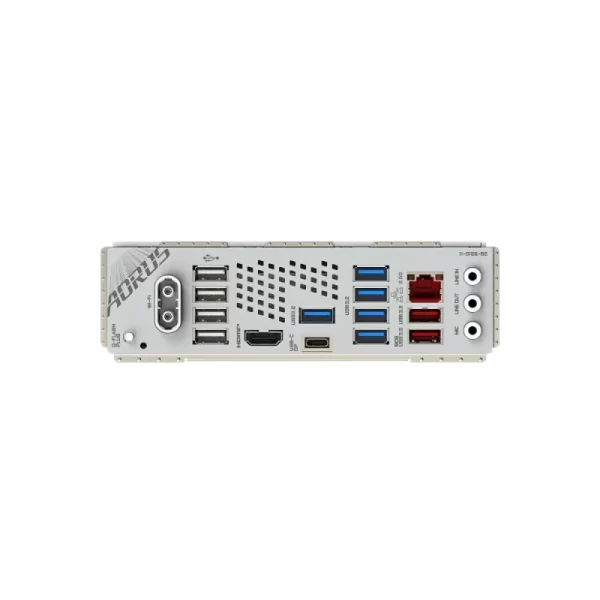

2 x SMA antenna connectors (2T2R)

1 x HDMI port

1 x USB Type-C® port (DisplayPort)

2 x USB 3.2 Gen 2 Type-A ports (red)

5 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jack

Temperature detection

Fan speed detection

Water cooling flow rate detection Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

LAN bandwidth management software
