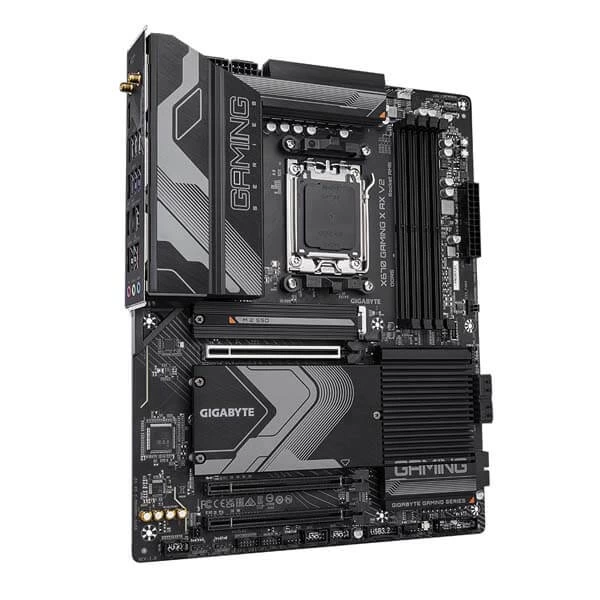

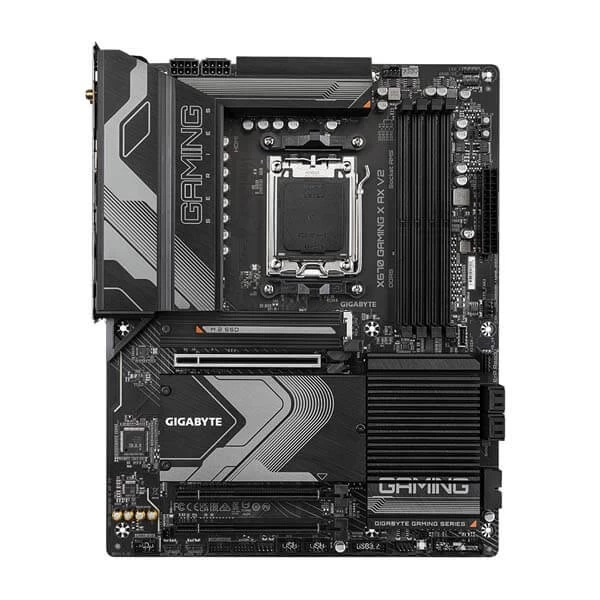

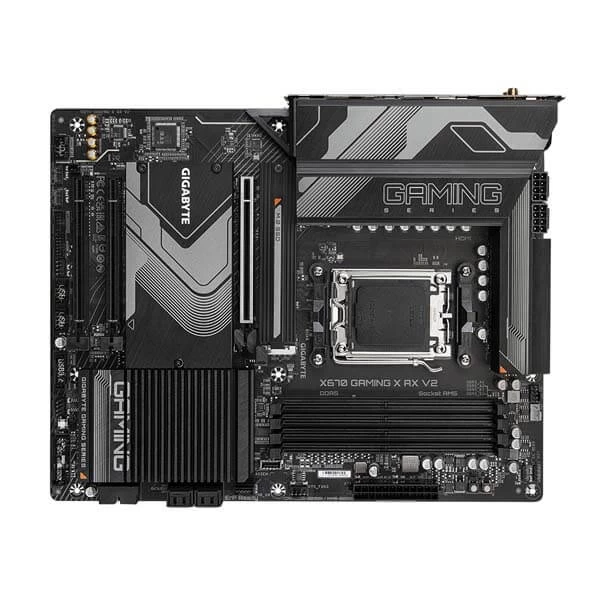

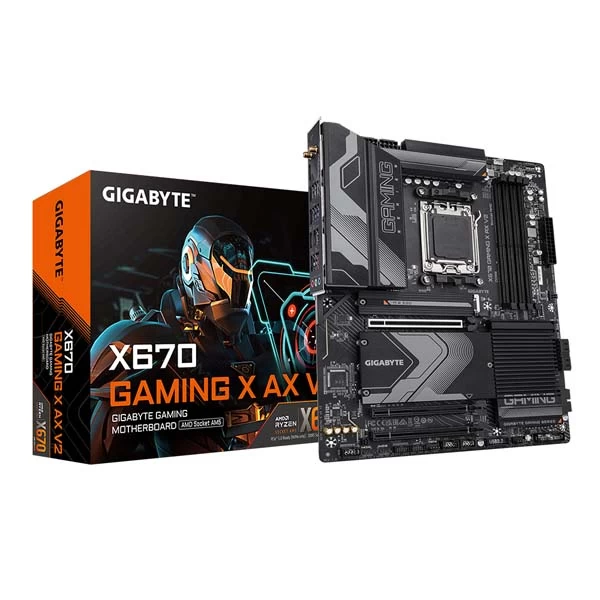

Gigabyte X670 Gaming X AX V2 WiFi Motherboard

Gigabyte
GIGABYTE
Availability:

Out of stock
Compare

₹22,900 ₹36,800

Out of stock

Compare

This Gaming Wifi motherboard can support ryzen 9000 processor and comes with overclocking feature with maximum speed of up to 8000Mhz. The PCIeX16 slot can only support a graphics card or an NVMe SSD. This motherboard can support windows 10 and 11

Features:

  • AMD Socket AM5：Supports AMD Ryzen 7000 Series / Ryzen 8000 / Ryzen 9000 Series Processors
  • Unparalleled Performance：Twin 14*+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
  • Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
  • Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：HDMI, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

802.11ax Wi-Fi 6E with GIGABYTE Ultra-high Gain Antenna:
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LAN:
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0/ 4.0 Hardware Design:
GIGABYTE X670 Motherboards are ready to work with the PCIe 5.0/ 4.0 devices which are expected to experience 4 times bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

High-End Audio Capacitors:
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard:
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Smart Fan 6:
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.



SKU: X670 GAMING X AX V2 Categories: , Tags: ,
Weight 3 kg
Brand

GIGABYTE
Amd Socket

Warranty

3 Years
Model: X670 GAMING X AX V2
Type: Gaming Motherboard
CPU: AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset: AMD X670
Memory:
  • Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics: Integrated Graphics Processor:

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)
Audio:
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module: Realtek Wi-Fi 6E RTL8852CE

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment)
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  • AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Note: The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  • AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

  • AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

Chipset:

  • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB: CPU:

  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports on the back panel

CPU + USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports on the back panel

Chipset:

  • 2 x USB Type-C ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
  • 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 4 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 2×2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x THB_U4 add-in card connector
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x Clear CMOS button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

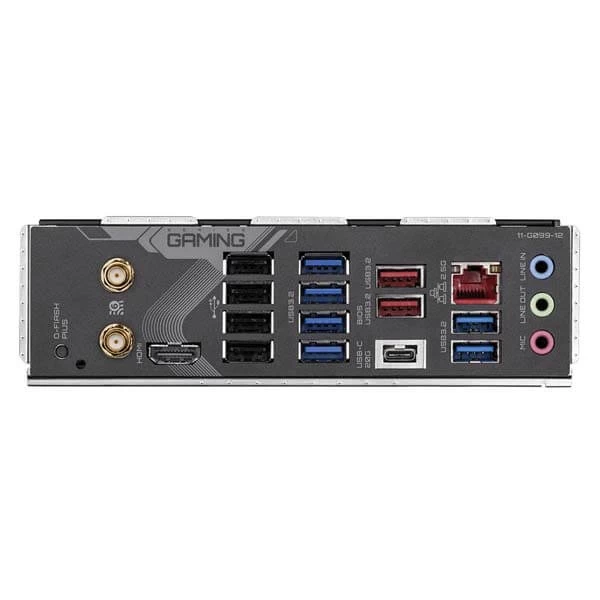

Back Panel Connectors:
  • 1 x Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port
  • 6 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C port, with USB 3.2 Gen 2×2 support
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller: iTE I/O Controller Chip
H/W Monitoring:
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.
BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
  • Support for GIGABYTE Control Center (GCC)

*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
Bundled Software:
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
