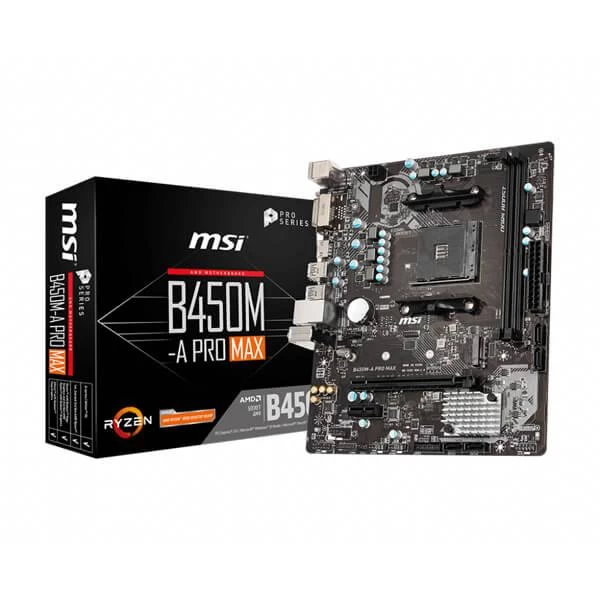

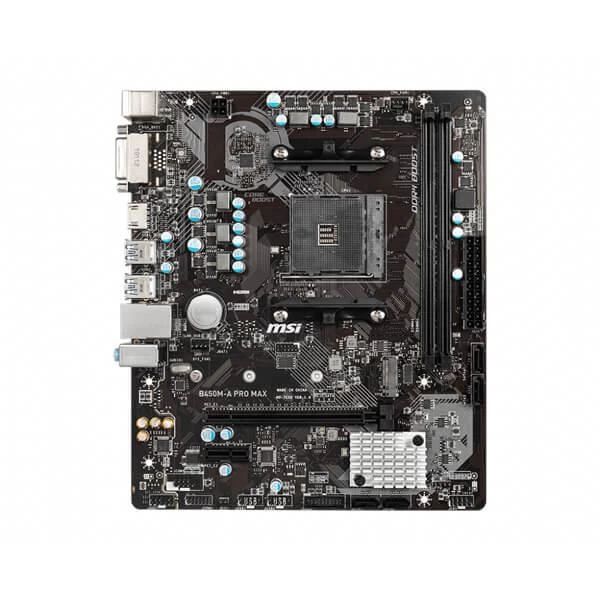

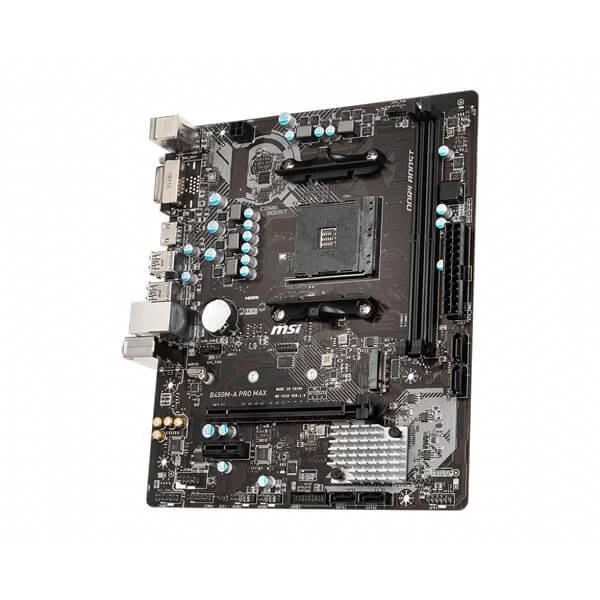

Msi B450M-A Pro Max Motherboard

MSI
MSI
Compare

₹4,708 ₹7,000

FOUND THIS PRODUCT AT A LOWER PRICE?
Compare

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

  • Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133 (OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
SKU: B450M-A PRO MAX Categories: , , Tags: , , , ,
Weight 2 kg
Brand

MSI
Warranty

3 Years
Model B450M-A-PRO-MAX
Processor Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory
  • 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
  • Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
    • For AMD Other CPU
      • 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
Slots
  • 1 x PCIe 3.0 x16 slot
    • Supports x16 speed
      • 1st, 2nd and 3rd Gen AMD Ryzen™
    • Supports x8 speed
      • Ryzen™ with Radeon™ Vega Graphics
      • 2nd Gen AMD Ryzen™ with Radeon™ Graphics
      • A-series
      • Athlon™ X4
    • Supports x4 speed
      • AMD® Athlon™ with Radeon™ Vega Graphics
  • PCIe 2.0 x1 slot
Onboard Graphics
  • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1,2
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @24Hz1,2
  1. Only support when using the processor with Graphicss
  2. Maximum shared memory of 2048 MB
Storage AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
    • Supports RAID 0, RAID1 and RAID 10
  • 1x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 and SATA 6Gb/s
      • 1st, 2nd and 3rd Gen AMD Ryzen™
      • Ryzen™ with Radeon™ Vega Graphics
      • 2nd Gen AMD Ryzen™ with Radeon™ Graphics
    • Supports PCIe 3.0 x2 and SATA 6Gb/s
      • AMD® Athlon™ with Radeon™ Vega Graphics
      • A-series
      • Athlon™ X4
    • Supports 2242/2280/22110 storage devices
USB AMD® B450 Chipset

  • 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1 x Realtek® 8111H Gigabit LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper
Back Panel Ports
  1. Mouse
  2. DVI-D Port
  3. USB 3.2 Gen1
  4. LAN Port
  5. Keyboard
  6. HDMI Port
  7. USB 2.0 Ports
  8. HD Audio Connectors
Dimensions
  • 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
  • m-ATX Form Factor
Mounting 6 mounting holes
Operating System Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
