Model |

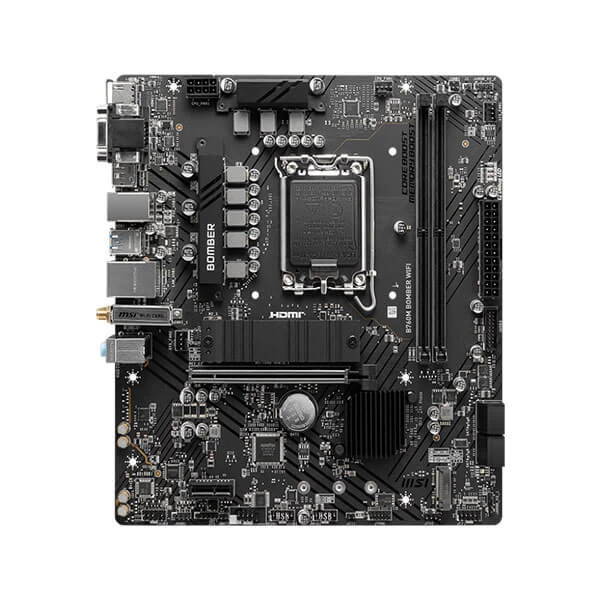

B760M BOMBER WIFI |
Chipset |
INTEL B760 |
CPU SUPPORT |
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
Memory |
2x DDR5, Maximum Memory Capacity 96GB Memory
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
- 1DPC 1R Max speed up to 6400+ MHz
- 1DPC 2R Max speed up to 5600+ MHz
|
Onboard Graphics |
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
1x D-Sub
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
EXPANSION SLOT |
1x PCI-E x16
1x PCI-E x1
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
Storage |
2x M.2 (Qty)
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
2x USB 2.0
4x USB 2.0
4x USB 3.2 Gen1 Type A
2x USB 3.2 Gen1 Type A |
LAN |
Realtek RTL8125B 2.5Gbps LAN |
WIRELESS / BLUETOOTH |
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA |
Audio |
Realtek ALC897 Codec
7.1-Channel High Definition Audio |
Internal I/O |
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0
- 2x USB 3.2 Gen1 Type A
|
LED FEATURE |
4x EZ Debug LED |
BACK PANEL PORTS |
- HDMI™
- VGA
- DisplayPort
- Keyboard / Mouse
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio Connectors
- USB 2.0
- USB 3.2 Gen 1 5Gbps (Type-A)
|
OPERATING SYSTEM |
Support for Windows 11 64-bit, Windows 10 64-bit |
PCB Dimension (W × L) |
mATX
220mmx243.84mm |
