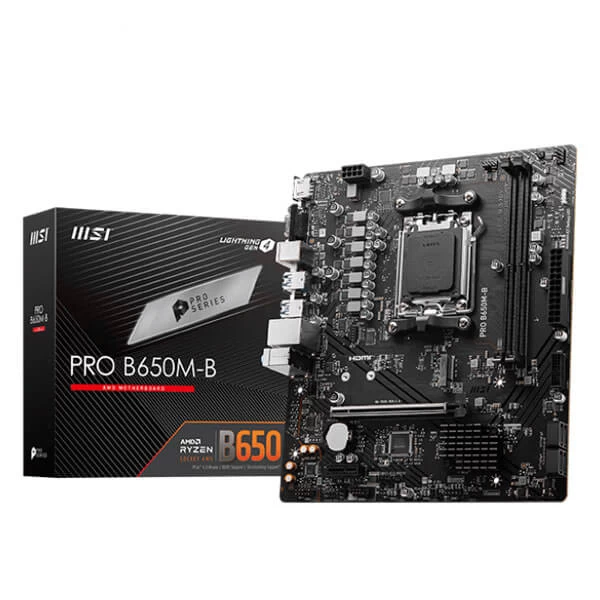

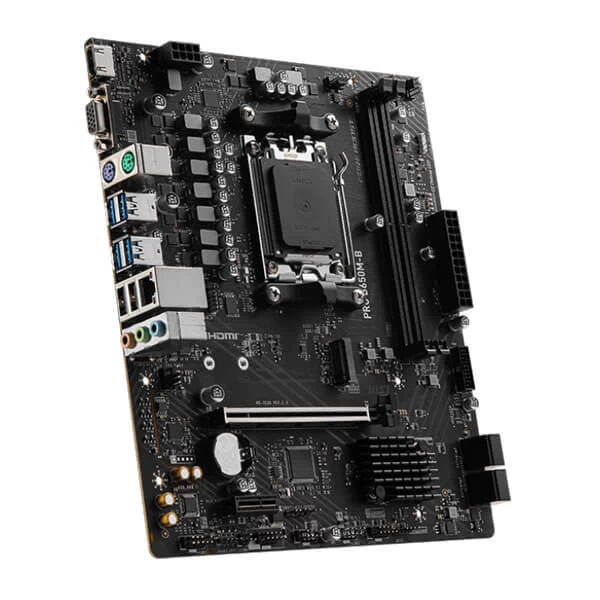

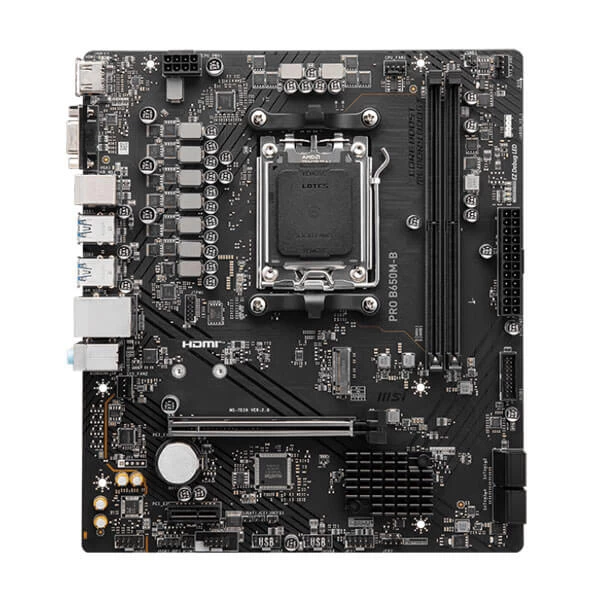

MSI Pro B650M-B DDR5 Motherboard

MSI
MSI
Compare

₹10,035 ₹17,299

FOUND THIS PRODUCT AT A LOWER PRICE?
Compare

MSI PRO B650M-B supports AMD Ryzen 8000 / 7000 Series Desktop Processors, Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Features:

  • Supports AMD Ryzen 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
SKU: PRO B650M -B Categories: , Tags: , , ,
Weight 2 kg
Brand

MSI
Amd Socket

Warranty

3 Years
Model Name  PRO B650M-B
 Chipset  AMD B650
 CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5
 Memory 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
 Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
 Slot  1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
 Storage  1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
 RAID  Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
 USB  2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
 LAN  Realtek® RTL8125BG 2.5G LAN
 Audio  Realtek® ALC897 Codec
7.1-Channel High Definition Audio
 Internal IO  1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
 LED FEATURE  4x EZ Debug LED
 BACK PANEL PORTS HDMI™
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio connectors
USB 2.0
 OPERATING SYSTEM  Support for Windows® 11 64-bit, Windows® 10 64-bit
 PCB Info  mATX
215mmx243.84mm
