Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
EXPANSION SLOT
1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Rear)
LAN
Realtek® RTL8111H Gigabit LAN
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED FEATURE
4x EZ Debug LED

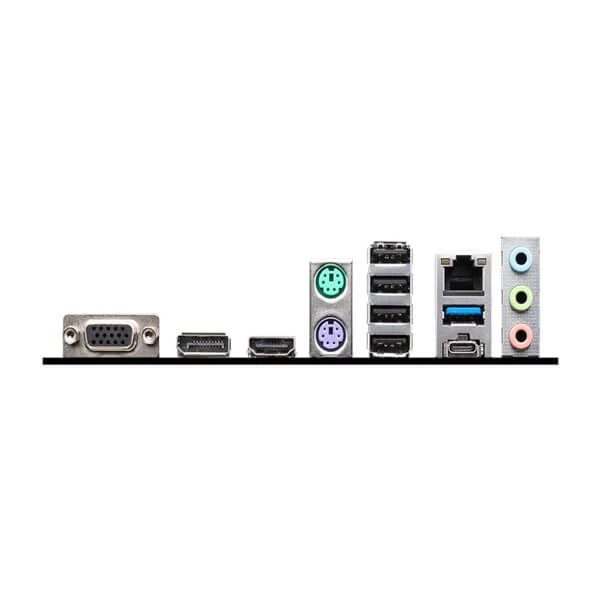

BACK PANEL PORTS
VGA
DisplayPort
HDMI™
Keyboard / Mouse
USB 2.0
LAN port
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension
mATX
243.84mmx243.84mm
